使用maven创建Java购物商城系统的web模块

javamall.manager.web是一个聚合工程的子模块,它的父工程是javamall.manager。阅读此篇文章,建议大家先看本站的这篇文章:Java购物商城系统后台管理系统的架构

下面就是新建javamall.manager.web模块的过程。

第一步:

选中“javamall.manager”右键,依次单击“New”→“Module”。

idea新建模块

第二步

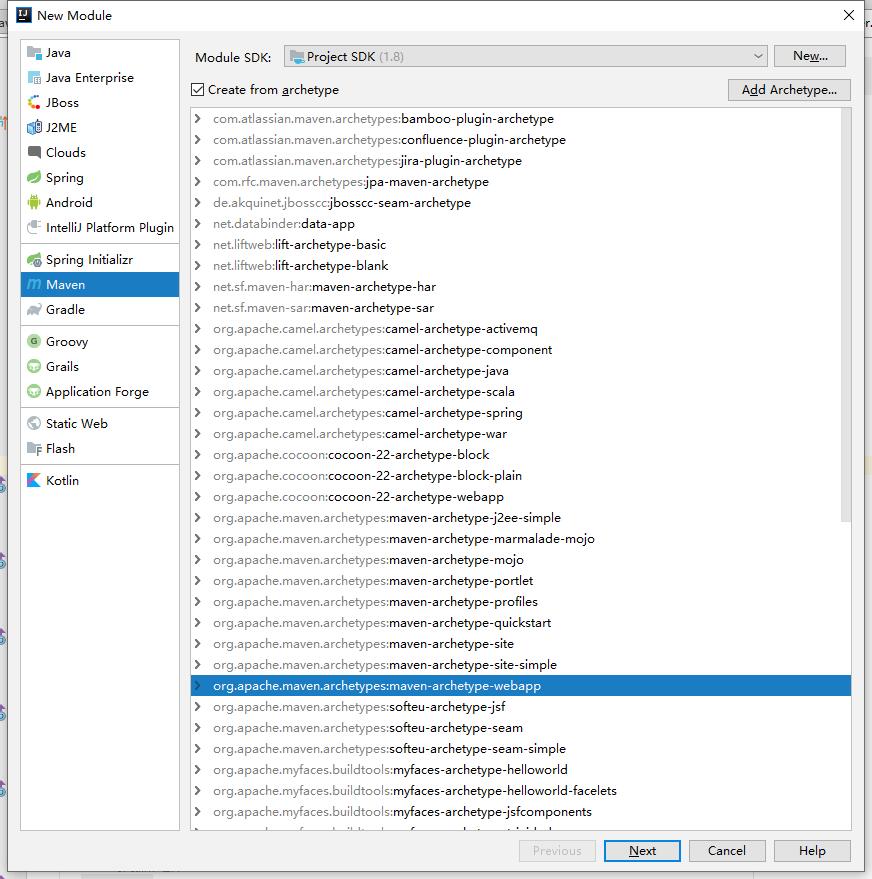

在这一步,就和之前的新建pojo、mapper、service不一样了,因为这个是web项目,所以我们需要勾选“Create from archetype”,并且选中下面的“org.apache.maven.archetypes:maven-archetype-webapp”。

然后单击“Next”。

通过archetype新建maven模块

第三步

可以,看到,该模块的Parent(父工程)就是javamall.manager。

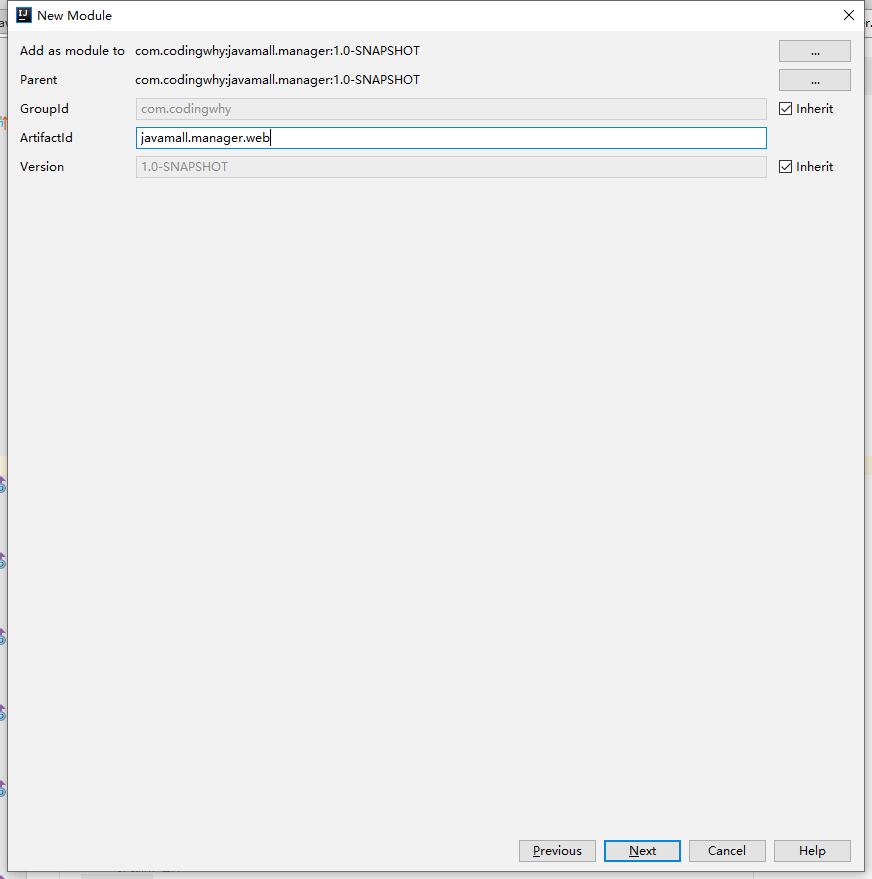

填写ArtifactId,内容是:javamall.manager.web。然后单击“Next”

填写ArtifactId内容

第四步

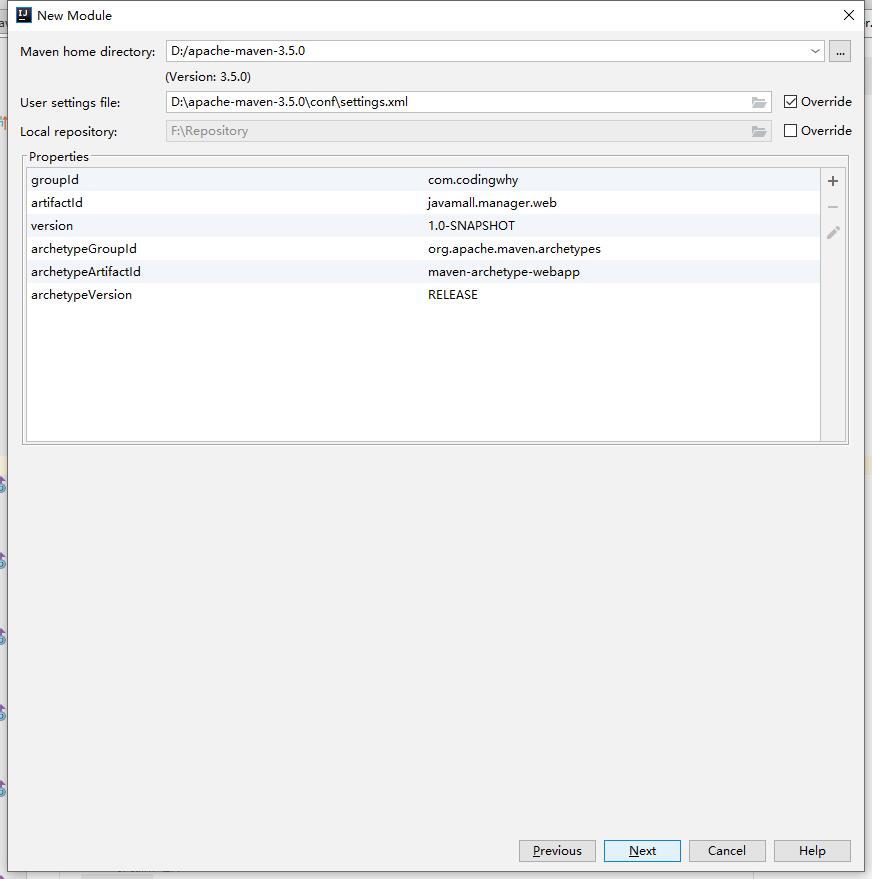

这步是maven的一些自定义配置,默认即可,我们单击“Next”。

maven配置

第五步

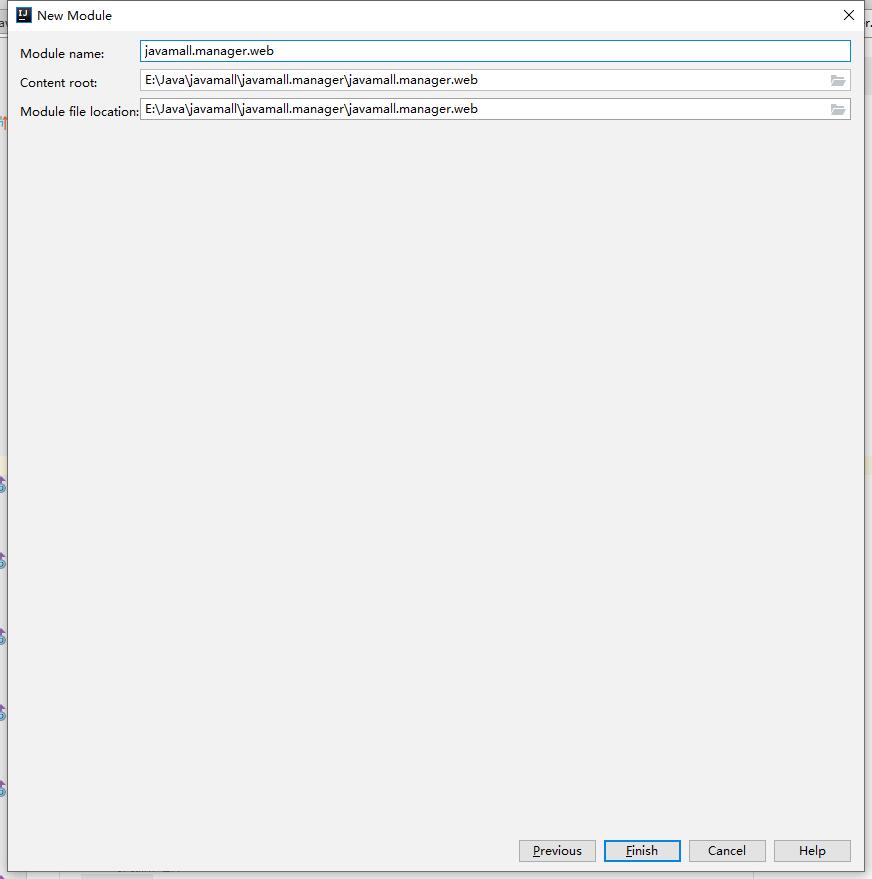

修改Module name为:javamall.manager.web,默认是javamallmanagerweb,我习惯加个“.”来分隔。

修改默认的Module name

第六步:修改pom.xml文件,代码如下

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>javamall.manager</artifactId>
        <groupId>com.codingwhy</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>javamall.manager.web</artifactId>
    <packaging>war</packaging>

    <name>javamall.manager.web Maven Webapp</name>
    <!-- FIXME change it to the project's website -->
    <url>http://www.codingwhy.com</url>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.source>1.7</maven.compiler.source>
        <maven.compiler.target>1.7</maven.compiler.target>
    </properties>

    <dependencies>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.11</version>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>com.codingwhy</groupId>
            <artifactId>javamall.manager.service</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>

        <!-- Mybatis -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
        </dependency>
        <!-- MySql -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <!-- 连接池 -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
        </dependency>
        <!-- Spring -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-beans</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-aspects</artifactId>
        </dependency>
        <!-- 文件上传组件 -->
        <!-- 没有会报错 -->
        <dependency>
            <groupId>commons-fileupload</groupId>
            <artifactId>commons-fileupload</artifactId>
        </dependency>
        <!-- 没有会报406 -->
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
        </dependency>

        <dependency>
            <groupId>commons-fileupload</groupId>
            <artifactId>commons-fileupload</artifactId>
        </dependency>

    </dependencies>

    <build>
        <finalName>javamall.manager.web</finalName>
        <pluginManagement><!-- lock down plugins versions to avoid using Maven defaults (may be moved to parent pom) -->
            <plugins>
                <plugin>
                    <artifactId>maven-clean-plugin</artifactId>
                    <version>3.1.0</version>
                </plugin>
                <!-- see http://maven.apache.org/ref/current/maven-core/default-bindings.html#Plugin_bindings_for_war_packaging -->
                <plugin>
                    <artifactId>maven-resources-plugin</artifactId>
                    <version>3.0.2</version>
                </plugin>
                <plugin>
                    <artifactId>maven-compiler-plugin</artifactId>
                    <version>3.8.0</version>
                </plugin>
                <plugin>
                    <artifactId>maven-surefire-plugin</artifactId>
                    <version>2.22.1</version>
                </plugin>
                <plugin>
                    <artifactId>maven-war-plugin</artifactId>
                    <version>3.2.2</version>
                </plugin>
                <plugin>
                    <artifactId>maven-install-plugin</artifactId>
                    <version>2.5.2</version>
                </plugin>
                <plugin>
                    <artifactId>maven-deploy-plugin</artifactId>
                    <version>2.8.2</version>
                </plugin>
            </plugins>
        </pluginManagement>
    </build>
</project>

关于pom的修改,以及依赖关系,可以看下我之前的这张图片

商城系统分布式后台管理系统的架构

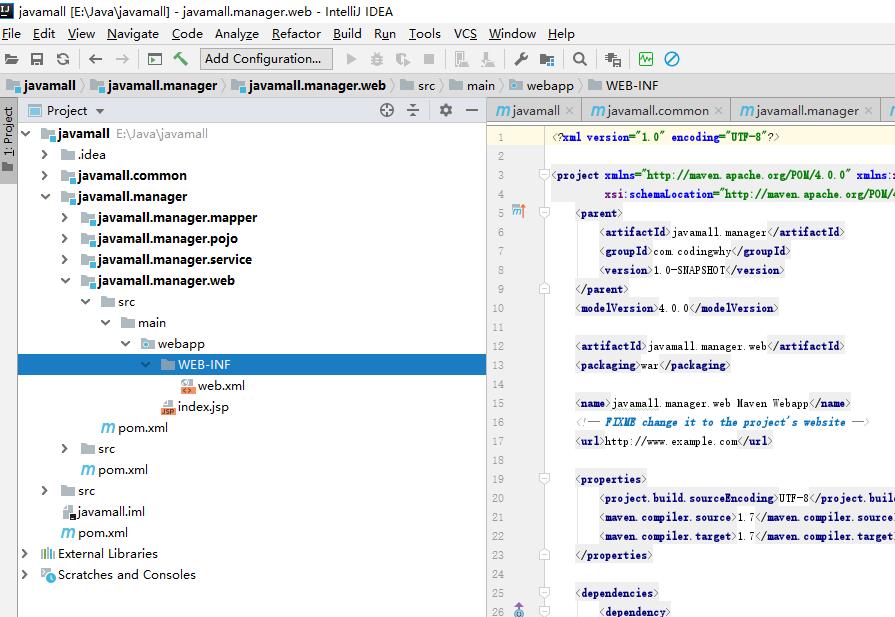

最后,看下web模块,新建成功后的截图吧。

新建成功后的web项目
